- HIGH EFFICIENCY: This horizontal pneumatic paste filling machine adopts an advanced cylinder and adopts the pneumatic principle, so it has high efficiency filling performance. Its filling speed is 0-40 bottles/min, so it can finish filling tasks quickly.
- LARGE CAPACITY: The filling capacity of this horizontal pneumatic paste filling machine is 100-600ml /3.38-20.29oz, and it is equipped with a 40L/1366oz hopper. It can achieve a larger filling volume at one time, eliminating the trouble of frequent refilling.
- CONVENIENT DESIGN: It is equipped with a foot switch that can be easily switched to the point action mode. The red switch on the side of the filling machine can help you stop filling in time. The horizontal pneumatic paste-filling machine is equipped with a dosing adjustment handle and a pressure adjustment knob.
- SAVE YOUR MIND: It is equipped with a rotary valve that can effectively control the transfer of paste to the outlet, so it can be almost drip-free. The whole filling process can be controlled, including the CHEning speed of the cylinder, filling speed, filling volume, etc., so it can meet different demands for precise filling.
- OPERATION: This liquid filling machine has an accuracy of ±0.01. It can precisely control the amount of liquid to be filled, which is greatly helpful for liquid processors. This horizontal pneumatic paste-filling machine is capable of pointing or pneumatic operation. You can choose the way according to your needs.
Specification
horizontal pneumatic paste filling machine：
Model: G1WGD
Color: Silver
Material: Stainless Steel 304, 201
Automatic Grade: Semi-automatic
Driven Type: Pneumatic
Voltage: 220/110V, 50/60Hz
Filling Machine Size：109*37*38cm/42.91*14.57*14.96inch
Filling Machine Weight: 35 kg/77.16lbs
Machinery Capacity: 1000BPH
Filling Material: Beer, Milk, Water, Oil, Juice, Sauce, Honey, Jam, Toothpaste
Filling Accuracy: ± 1%
Machinery Test Report: Provided
Video Outgoing Inspection: Provided
Single Package Size: 125*50*50 cm/49.21*19.69*19.69inch
Single Gross Weight: 45 kg/99.21lbs
Standard Export Package: Wooden Case or As Your Request for Paste Filling Machine
Filling Range: 100-600ml /3.38-20.29oz
Air Pressure: 0.6-0.8mpa
Filling Speed: 0-40 bottles/min
Control: Button Control Foot Pedal
Certification: ISO9001
Hopper（with a lid）:
Capacity: 40L/1366oz（Actual capacity is about 38L/1285oz）
Hopper Material: 304 Stainless Steel
Color: Silver
Hopper Size: 40*40*48cm/15.75*15.75*18.9inch
Hopper Tri-clamp Diameter：6.4cm/2.5inch
Packing Size: 43*43*50cm/16.9*16.9*19.7inch
Hopper Inside Diameter: 39.5cm/15.55inch
Package Included

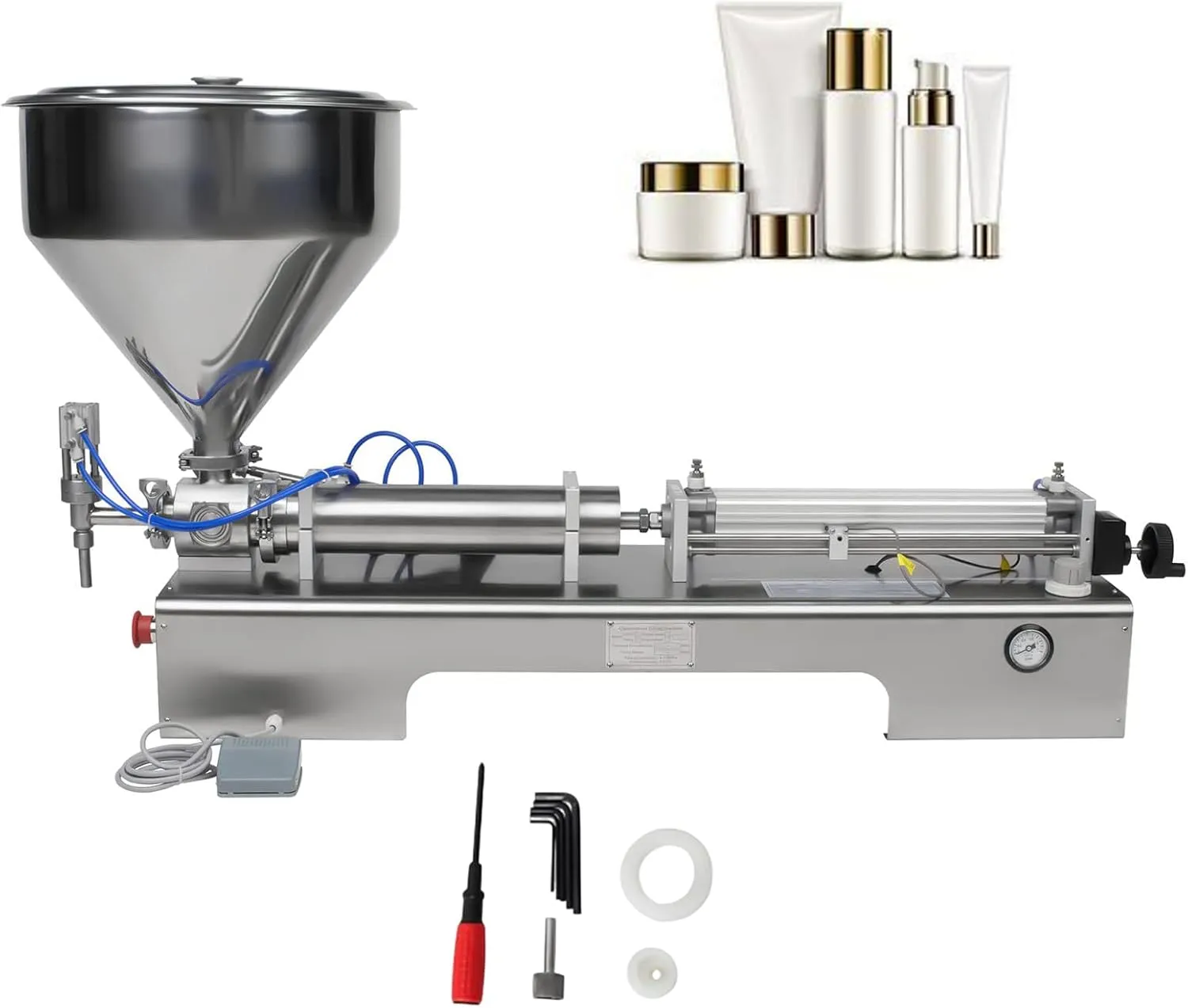

1*Horizontal Pneumatic Paste Filling Machine
1*Hopper
1* Phillips Screwdriver
5*Hex Wrenches
1* Interchangeable Nozzle
11* Silicone O-rings
1* English Manual
Notes
Please allow slight color difference due to shooting light, and 1-3mm error due to manual measurement, please make sure you don't mind before ordering.
